Efficacy of bone-substitute materials use in immediate dental implant placement: A systematic review and meta-analysis

John Zaki 1 2, Nermin Yusuf 3, Ahmed El-Khadem 4 5, Rob J P M Scholten 6 7, Kevin Jenniskens 6

Affiliations

08 January 2021

-

doi: 10.1111/cid.13014

Abstract

Objective: To assess the efficacy of using a bone substitute material (BSM) in the fixture-socket gap in patients undergoing tooth extraction and immediate implant placement.

Materials and methods: MEDLINE, EMBASE, and CENTRAL databases were searched for randomized controlled trials (RCTs). RCTs were screened for eligibility, and data were extracted by two authors independently. Risk of bias (ROB) was assessed using Cochrane's ROB tool 2.0. Primary outcomes were implant failure, overall complications, and soft-tissue esthetics. Secondary outcomes were vertical buccal bone resorption, vertical interproximal bone resorption, horizontal buccal bone resorption, and mid-buccal mucosal recession. Meta-analysis was performed using random-effects model with generic inverse variance weighing. GRADE was used to grade the certainty of the evidence.

Results: After screening 19 544 potentially eligible references, 20 RCTs were included in this review, with a total of 848 patients (916 sites). Most included RCTs were deemed of some concerns (53%) or at low (38%) risk of bias, except for overall complications (high ROB). Implant failure did not differ significantly RR = 0.92 (confidence intervals [CI] 0.34 to 2.46) between using a BSM compared with not using a BSM (NoBSM). BSM use resulted in less horizontal buccal bone resorption (MD = -0.52 mm [95% CI -0.74 to -0.30]), a higher esthetic score (MD = 1.49 [95% CI 0.46 to 2.53]), but also more complications (RR = 3.50 [95% CI 1.11 to 11.1] compared with NoBSM. Too few trials compared types of BSMs against each other to allow for pooled analyses. The certainty of the evidence was considered moderate for all outcomes except implant failure (low), overall complications (very low), and vertical interproximal bone resorption (very low).

Conclusion: BSM use during immediate implant placement reduces horizontal buccal bone resorption and improves the periimplant soft-tissue esthetics. Although BSM use increases the risk of predominantly minor complications.

Keywords: bone regeneration; bone substitutes; dental implant; tooth extraction; tooth socket.

Conflict of interest statement

The authors declare no conflicts of interest.

Figures

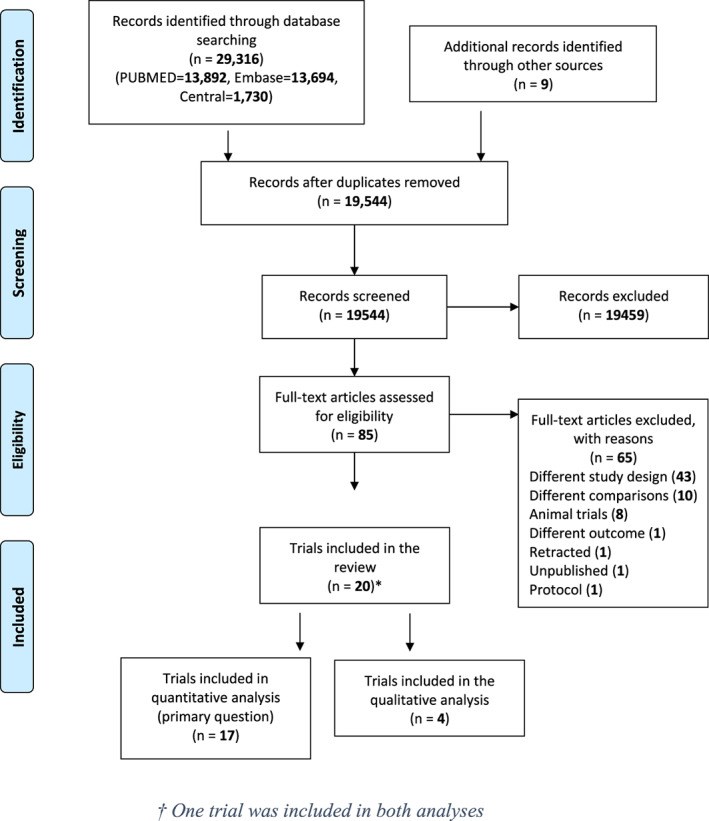

FIGURE 1 Literature search flowchart. *One trial was included in both analyses

FIGURE 1 Literature search flowchart. *One trial was included in both analyses

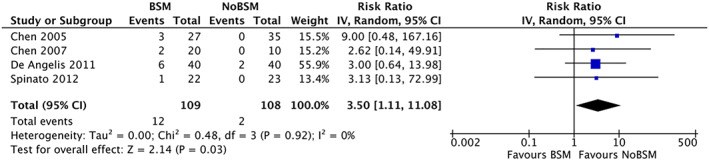

FIGURE 2 Forest‐plot of “implant failure” using a bone‐substitute material (BSM) vs no filling material (NoBSM)

FIGURE 2 Forest‐plot of “implant failure” using a bone‐substitute material (BSM) vs no filling material (NoBSM)

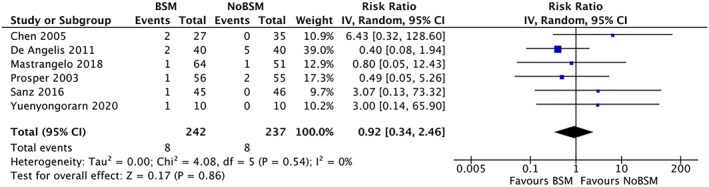

FIGURE 3 Forest‐plot of “overall complications” using a bone‐substitute material (BSM) vs no filling material (NoBSM)

FIGURE 3 Forest‐plot of “overall complications” using a bone‐substitute material (BSM) vs no filling material (NoBSM)

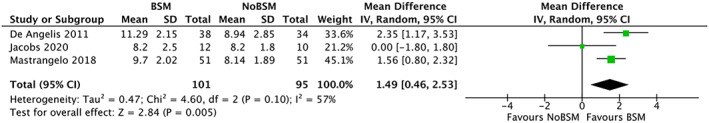

FIGURE 4 Forest‐plot of “esthetics” (pink esthetic score 0‐14) using a bone‐substitute material (BSM) vs no filling material (NoBSM)

FIGURE 4 Forest‐plot of “esthetics” (pink esthetic score 0‐14) using a bone‐substitute material (BSM) vs no filling material (NoBSM)
