Adductor Insertion Avulsion Syndrome with Stress Fracture in Morbidly Obese Patient Diagnosed on 18F-Sodium Fluoride Positron Emission Tomography-Computed Tomography

Sharjeel Usmani 1 2, Fahad Marafi 2, Fareeda Al Kandari 1, Najeeb Ahmed 1

Affiliations

01 July 2019

-

doi: 10.4103/ijnm.IJNM_77_19

Abstract

Adductor insertion avulsion syndrome, also known as "thigh splints," is a painful condition affecting the proximal to mid-femur at the insertion of the adductor muscles of the thigh. 18F-Sodium fluoride (18F-NaF) is increasingly used in diagnosing skeletal pain which is not identified on radiographs. We report a case of a 56-year-old morbidly obese woman with left hip pain referred for 18F-NaF positron emission tomography-computed tomography (PET-CT) as magnetic resonance imaging cannot be performed due to obesity. 18F-NaF PET-CT shows an increase in tracer uptake at the posteromedial cortex of the upper shaft of left femur. Findings are likely due to adductor insertion avulsion syndrome. 18F-NaF provides important diagnostic information that might alter treatment options.

Keywords: 18F-sodium fluoride positron emission tomography–computed tomography; adductor insertion avulsion syndrome; stress fracture.

Conflict of interest statement

There are no conflicts of interest.

Figures

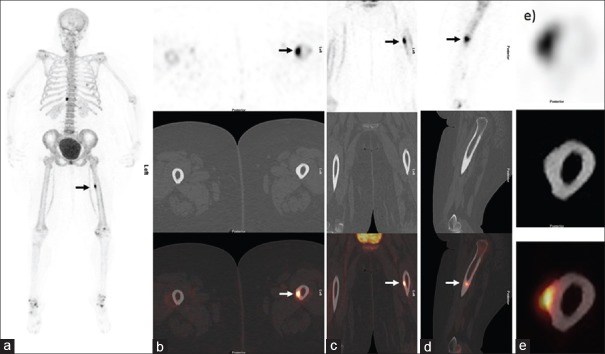

Figure 1 (a) Anterior maximum intensity projection images showing focal spindle-shaped area of increase tracer uptake at upper shaft of left femur (arrow). Increased sodium fluoride uptake also seen at degenerative/arthritic changes at osteophyte at D11, end plates of L4/L5 vertebrae, both knees, and ankle joints. (b-d) Cross-sectional 18F-sodium fluoride positron emission tomography–computed tomography (e) zoomed transaxial images showing focal area of increase tracer uptake at posteromedial cortex of upper shaft of left femur (arrow); corresponding computed tomography showing periosteal thickening with central linear lucency. Findings are likely due to adductor insertion avulsion syndrome with stress fracture

Figure 1 (a) Anterior maximum intensity projection images showing focal spindle-shaped area of increase tracer uptake at upper shaft of left femur (arrow). Increased sodium fluoride uptake also seen at degenerative/arthritic changes at osteophyte at D11, end plates of L4/L5 vertebrae, both knees, and ankle joints. (b-d) Cross-sectional 18F-sodium fluoride positron emission tomography–computed tomography (e) zoomed transaxial images showing focal area of increase tracer uptake at posteromedial cortex of upper shaft of left femur (arrow); corresponding computed tomography showing periosteal thickening with central linear lucency. Findings are likely due to adductor insertion avulsion syndrome with stress fracture

Similar articles

Adductor Insertion Avulsion Syndrome with Proximal Femoral Shaft Stress Fracture: Not Only Found in Young Athletes.

Pauchet A, Falticeanu A, Lebecque O.J Belg Soc Radiol. 2020 May 6;104(1):21. doi: 10.5334/jbsr.2014.PMID: 32405612 Free PMC article.

Adductor insertion avulsion syndrome (thigh splints): spectrum of MR imaging features.

Anderson MW, Kaplan PA, Dussault RG.AJR Am J Roentgenol. 2001 Sep;177(3):673-5. doi: 10.2214/ajr.177.3.1770673.PMID: 11517070

Diagnostic Challenge of Staging Metastatic Bone Disease in the Morbidly Obese Patients: A Primary Study Evaluating the Usefulness of 18F-Sodium Fluoride (NaF) PET-CT.

Usmani S, Marafi F, Ahmed N, Esmail A, Al Kandari F, Van den Wyngaert T.Clin Nucl Med. 2017 Nov;42(11):829-836. doi: 10.1097/RLU.0000000000001823.PMID: 28872551

Textitis as Seen on 18F-NaF Imaging Using an Ultra-High-Resolution Positron Emission Mammography Scanner.

Usmani S, Rasheed R, Al Kandari F.J Nucl Med Technol. 2020 Jun;48(2):181-183. doi: 10.2967/jnmt.119.235986. Epub 2020 Feb 28.PMID: 32111663 Review.

Newer PET application with an old tracer: role of 18F-NaF skeletal PET/CT in oncologic practice.

Bastawrous S, Bhargava P, Behnia F, Djang DS, Haseley DR.Radiographics. 2014 Sep-Oct;34(5):1295-316. doi: 10.1148/rg.345130061.PMID: 25208282 Review.

KMEL References

https://pubmed.ncbi.nlm.nih.gov/

References

  1.
    1. Ozburn MS, Nichols JW. Pubic ramus and adductor insertion stress fractures in female basic trainees. Mil Med. 1981;146:332–4. - PubMed
  2.
    1. Anderson SE, Johnston JO, O’Donnell R, Steinbach LS. MR imaging of sports-related pseudotumor in children: Mid femoral diaphyseal periostitis at insertion site of adductor musculature. AJR Am J Roentgenol. 2001;176:1227–31. - PubMed
  3.
    1. Anderson MW, Kaplan PA, Dussault RG. Adductor insertion avulsion syndrome (thigh splints): Spectrum of MR imaging features. AJR Am J Roentgenol. 2001;177:673–5. - PubMed
  4.
    1. Charkes ND, Siddhivarn N, Schneck CD. Bone scanning in the adductor insertion avulsion syndrome (“thigh splints”) J Nucl Med. 1987;28:1835–8. - PubMed
  5.
    1. Czernin J, Satyamurthy N, Schiepers C. Molecular mechanisms of bone 18F-naF deposition. J Nucl Med. 2010;51:1826–9. - PMC - PubMed
  6.
    1. Even-Sapir E, Metser U, Mishani E, Lievshitz G, Lerman H, Leibovitch I, et al. The detection of bone metastases in patients with high-risk prostate cancer: 99mTc-MDP planar bone scintigraphy, single- and multi-field-of-view SPECT, 18F-fluoride PET, and 18F-fluoride PET/CT. J Nucl Med. 2006;47:287–97. - PubMed
  7.
    1. Löfgren J, Mortensen J, Rasmussen SH, Madsen C, Loft A, Hansen AE, et al. A prospective study comparing 99mTc-hydroxyethylene-diphosphonate planar bone scintigraphy and whole-body SPECT/CT with 18F-fluoride PET/CT and 18F-fluoride PET/MRI for diagnosing bone metastases. J Nucl Med. 2017;58:1778–85. - PubMed
  8.
    1. Drubach LA, Sapp MV, Laffin S, Kleinman PK. Fluorine-18 NaF PET imaging of child abuse. Pediatr Radiol. 2008;38:776–9. - PubMed
  9.
    1. Laverick S, Bounds G, Wong WL. [18F]-fluoride positron emission tomography for imaging condylar hyperplasia. Br J Oral Maxillofac Surg. 2009;47:196–9. - PubMed
  10.
    1. Usmani S, Marafi F, Ahmed N, Esmail A, Al Kandari F, Van den Wyngaert T, et al. Diagnostic challenge of staging metastatic bone disease in the morbidly obese patients: A Primary study evaluating the usefulness of 18F-sodium fluoride (NaF) PET-CT. Clin Nucl Med. 2017;42:829–36. - PubMed
