Tc-99m HDP Single Photon Emission Computed Tomography/Computed Tomography in Stress Fracture of Base of Metatarsal Bone

Sharjeel Usmani 1 2, Fatma Al-Ramadhan 1, Fahad Marafi 2, Rashid Rasheed 1, Fareeda Al Kandari 1

Affiliations

expand

01 July 2019

Abstract

Proximal metatarsal stress fractures are common at base of the second metatarsal, typically seen in repetitive impact athletes, dancers, and those with cavus feet. It is caused by increased bone resorption rather than formation in a state of abrupt increased physical activity or intensity, leading to repetitive microfractures and eventually stress fracture. It is characterized by swelling and tenderness of a prolonged duration. We report a case of a 40-year-old female having left foot pain diagnosed with stress fracture on Tc-99m HDP single-photon emission computed tomography (SPECT)-CT. We emphasize the use of SPECT/CT in allocating active source of pain in the feet.

Keywords: Foot pain; Tc-99m HDP single-photon emission computed tomography-computed tomography; stress fracture.

Conflict of interest statement

There are no conflicts of interest.

Figures

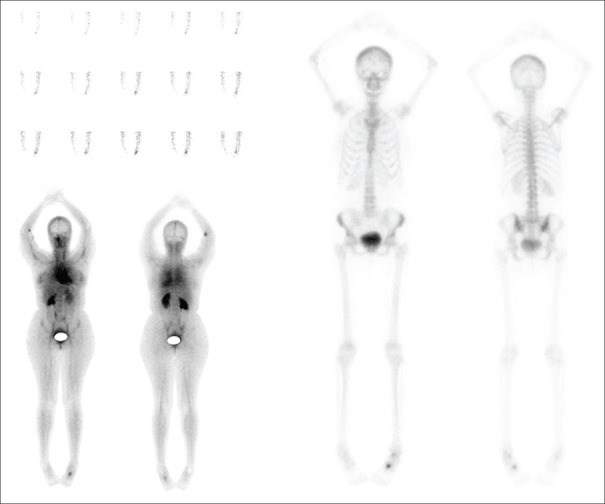

Figure 1 Dynamic flow and blood pool images showing increased flow and hyperemia at the left midtarsal region. The delayed whole body showing focal area of increase tracer uptake at the base of left second metatarsal bone. Right foot is unremarkable

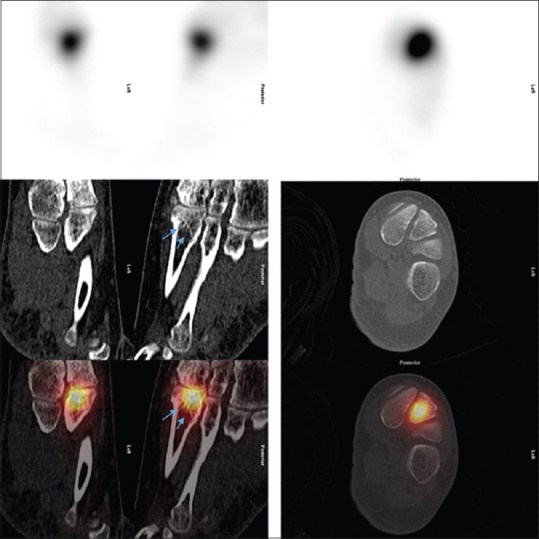

$Figure 2 Noncontrast computed tomography sagittal, coronal, and transaxial images showing fracture line with corresponding increased uptake on fused images$

Figure 2 Noncontrast computed tomography sagittal, coronal, and transaxial images showing fracture line with corresponding increased uptake on fused images
