Functional Characterization of Posttraumatic Heterotopic Ossification of Tibiofibular Syndesmosis with Dynamic Bone Scan and Single-Photon Emission Computed Tomography/Computed Tomography

Bhavana Shyamanur 1, Najeeb Ahmed 1, Sharjeel Usmani 2

Affiliations

01 July 2022

-

doi: 10.4103/ijnm.ijnm_124_21

Abstract

A 53-year-old man was investigated for ongoing right ankle pain and lateral malleolus swelling following a traumatic inversion injury 12 weeks prior. The initial ankle radiograph was normal with no evidence of fracturing. The follow-up radiograph showed bridging ossification in the distal tibiofibular syndesmosis. As the pain did not subside, posttraumatic heterotopic ossification (HO) was suspected, and triple-phase dynamic bone imaging with technetium 99m-methylene diphosphonate was performed to guide further management. The bone scan revealed intense focal tracer activity centered on the HO of the tibiofibular syndesmosis, with no evidence of occult fracturing confirming HO as a pain generator.

Keywords: Dynamic bone imaging; heterotopic bone formation; heterotopic ossification; technetium 99m-methylene diphosphonate; tibiofibular syndesmosis.

Conflict of interest statement

There are no conflicts of interest.

Figures

Figure 1 A 53-year-old man presented with persistent right ankle pain and lateral malleolus swelling following traumatic inversion injury 12 weeks prior. (a) The anteroposterior right ankle X-ray was normal. (b) Follow-up X-ray 2 months later showed bridging ossification and synostosis between the distal tibia and fibula, leading to the diagnosis of posttraumatic heterotopic ossification

Figure 1 A 53-year-old man presented with persistent right ankle pain and lateral malleolus swelling following traumatic inversion injury 12 weeks prior. (a) The anteroposterior right ankle X-ray was normal. (b) Follow-up X-ray 2 months later showed bridging ossification and synostosis between the distal tibia and fibula, leading to the diagnosis of posttraumatic heterotopic ossification

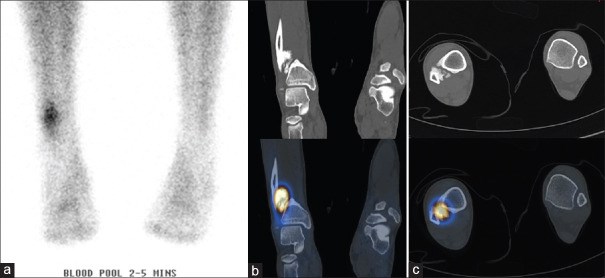

Figure 2 The patient continued to have persistent symptoms and triple-phase dynamic bone imaging with technetium 99m-methylene diphosphonate was performed to direct further management. (a-c) Both blood pool and bone phase imaging revealed intense focal tracer activity. The localization to heterotopic ossification centered on the heterotopic ossification of the tibiofibular syndesmosis was best seen with single-photon emission computed tomography/computed tomography indicating ongoing osteoblastic turnover in the region. There was no scintigraphic evidence of occult fracturing

Figure 2 The patient continued to have persistent symptoms and triple-phase dynamic bone imaging with technetium 99m-methylene diphosphonate was performed to direct further management. (a-c) Both blood pool and bone phase imaging revealed intense focal tracer activity. The localization to heterotopic ossification centered on the heterotopic ossification of the tibiofibular syndesmosis was best seen with single-photon emission computed tomography/computed tomography indicating ongoing osteoblastic turnover in the region. There was no scintigraphic evidence of occult fracturing
