Value of Oblique View in Nodular Thyroid Disease; Revisiting Fundamentals

Abdelhamid H Elgazzar 1, Saud Alenezi 1, Jehan M Alshammari 1, Mohammad Ghanem 1, Saqr Asa'ad 1

Affiliations

01 May 2015

-

doi: 10.4103/1450-1147.153911

Abstract

Thyroid scintigraphy plays an important role in the anatomical and functional evaluation of thyroid nodules which carry the risk of malignancy. The presence of multiple nodules carries overall smaller risk of cancer than solitary nodule. Missing nodules, whether solitary or multiple, may mean delaying detection of possible cancer. Therefore, it is important to improve the delectability of thyroid scintigraphy using most optimal imaging techniques. For pinhole thyroid imaging, there is a recent trend to omit oblique projections by some laboratories. The objective of this study was to reevaluate the impact of oblique projections in the detection of thyroid nodules. A total of 92 cases with nodular thyroid disease on routine pinhole thyroid scintigraphy was reviewed retrospectively. Two nuclear medicine physicians recorded the number of nodules based on the anterior view only and another time with adding the oblique views. A total of 192 nodules was detected using the three views. Sixty nodules (31%) were only seen on the oblique views and were missed on the anterior projections. Oblique pinhole projections are mandatory for adequate thyroid scintigraphy since 31% of nodules are missed if only anterior projection was used for interpretation. Following proper techniques will avoid missing of detection of nodule that may harbor cancer.

Keywords: Radionuclide; oblique views; pinhole; thyroid nodules; thyroid scintigraphy.

Conflict of interest statement

Conflict of Interest: None declared.

Figures

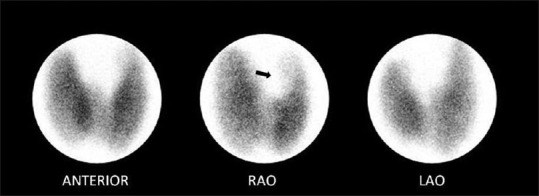

Figure 1 Multiple projections of a Tc-99m pertechnetate thyroid study. The anterior image demonstrates normal gland with no definite nodules. The RAO image demonstrates a cold nodule at the posteromedial aspect of the right upper pole (arrow). RAO: Right anterior oblique

Figure 1 Multiple projections of a Tc-99m pertechnetate thyroid study. The anterior image demonstrates normal gland with no definite nodules. The RAO image demonstrates a cold nodule at the posteromedial aspect of the right upper pole (arrow). RAO: Right anterior oblique

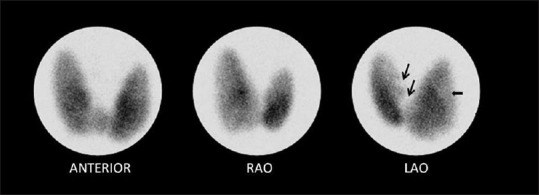

Figure 2 Tc-99m pertechnetate pinhole thyroid study with multiple projections. The anterior image shows no definite evidence of discrete nodules. The LAO demonstrates a large cold nodule at the lateral aspect of the left upper pole (thick arrow). As well, there are two small cold nodules at the posterior aspect of the right lobe (thin arrows). LAO: Left anterior oblique

Figure 2 Tc-99m pertechnetate pinhole thyroid study with multiple projections. The anterior image shows no definite evidence of discrete nodules. The LAO demonstrates a large cold nodule at the lateral aspect of the left upper pole (thick arrow). As well, there are two small cold nodules at the posterior aspect of the right lobe (thin arrows). LAO: Left anterior oblique

Similar articles

Comparison of pinhole and high-resolution parallel-hole imaging for nodular thyroid disease.

Ghanem MA, Elgazzar AH, Elsaid MM, Shehab F.Clin Nucl Med. 2011 Sep;36(9):770-1. doi: 10.1097/RLU.0b013e318219ac29.PMID: 21825846

Improved diagnosis of "nondelineated" thyroid nodules by oblique scintillation scanning and echography.

Blum M, Goldman AB.J Nucl Med. 1975 Aug;16(8):713-5.PMID: 1177047

Oblique views in thyroid imaging.

Smith ML, Wraight EP.Clin Radiol. 1989 Sep;40(5):505-7. doi: 10.1016/s0009-9260(89)80264-8.PMID: 2791463

Imaging and Imaging-Based Management of Pediatric Thyroid Nodules.

Iakovou I, Giannoula E, Sachpekidis C.J Clin Med. 2020 Feb 1;9(2):384. doi: 10.3390/jcm9020384.PMID: 32024056 Free PMC article. Review.

Imaging of the thyroid in benign and malignant disease.

Intenzo CM, Dam HQ, Manzone TA, Kim SM.Semin Nucl Med. 2012 Jan;42(1):49-61. doi: 10.1053/j.semnuclmed.2011.07.004.PMID: 22117813 Review.

KMEL References

https://pubmed.ncbi.nlm.nih.gov/

References

  1.
    1. Kang HW, No JH, Chung JH, Min YK, Lee MS, Lee MK, et al. Prevalence, clinical and ultrasonographic characteristics of thyroid incidentalomas. Thyroid. 2004;14:29–33. - PubMed
  2.
    1. Polyzos SA, Anastasilakis AD. Clinical complications following thyroid fine-needle biopsy: A systematic review. Clin Endocrinol (Oxf) 2009;71:157–65. - PubMed
  3.
    1. Frates MC, Benson CB, Doubilet PM, Kunreuther E, Contreras M, Cibas ES, et al. Prevalence and distribution of carcinoma in patients with solitary and multiple thyroid nodules on sonography. J Clin Endocrinol Metab. 2006;91:3411–7. - PubMed
  4.
    1. Gandolfi PP, Frisina A, Raffa M, Renda F, Rocchetti O, Ruggeri C, et al. The incidence of thyroid carcinoma in multinodular goiter: Retrospective analysis. Acta Biomed. 2004;75:114–7. - PubMed
  5.
    1. Raber W, Kaserer K, Niederle B, Vierhapper H. Risk factors for malignancy of thyroid nodules initially identified as follicular neoplasia by fine-needle aspiration: Results of a prospective study of one hundred twenty patients. Thyroid. 2000;10:709–12. - PubMed
  6.
    1. Seret A. A comparison of contrast and sensitivity in Tc-99m thyroid scintigraphy between nine nuclear medicine centers of a geographic area. Alasbimn J. 2006;32:AJ32–33.
  7.
    1. Ghanem MA, Elgazzar AH, Elsaid MM, Shehab F. Comparison of pinhole and high-resolution parallel-hole imaging for nodular thyroid disease. Clin Nucl Med. 2011;36:770–1. - PubMed
  8.
    1. Crawford ES, Guarasci DT, Larson SA. A survey of thyroid gland scintigraphy. J Nucl Med Technol. 2009;37:173–8. - PubMed
  9.
    1. McHenry CR, Huh ES, Machekano RN. Is nodule size an independent predictor of thyroid malignancy? Surgery. 2008;144:1062–8. - PubMed
  10.
    1. Smith ML, Wraight EP. Oblique views in thyroid imaging. Clin Radiol. 1989;40:505–7. - PubMed
  11.
    1. Karelitz JR, Richards JB. Necessity of oblique views in evaluating the functional status of a thyroid nodule. J Nucl Med. 1974;15:782–5. - PubMed
