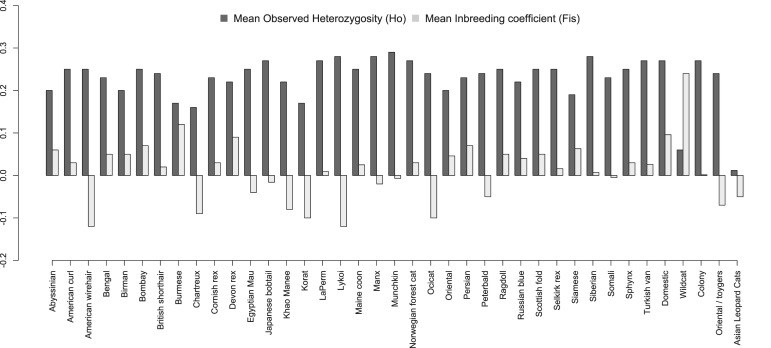

Figure 1 Summary of population genetics of cat breeds and populations. Random bred cats have the highest measures of genetic variation whereas several breeds have critically low genetic variation, such as Burmese and Birman. Breeds that have been developed more recently from random bred populations, such as Siberians and Munchkins, have high diversity, as well as breeds continually pulled from random bred populations, such as the Manx cats from the Isle of Man. Note: Domestic group represents random bred samples where as Oriental/Toyger is pedigree.

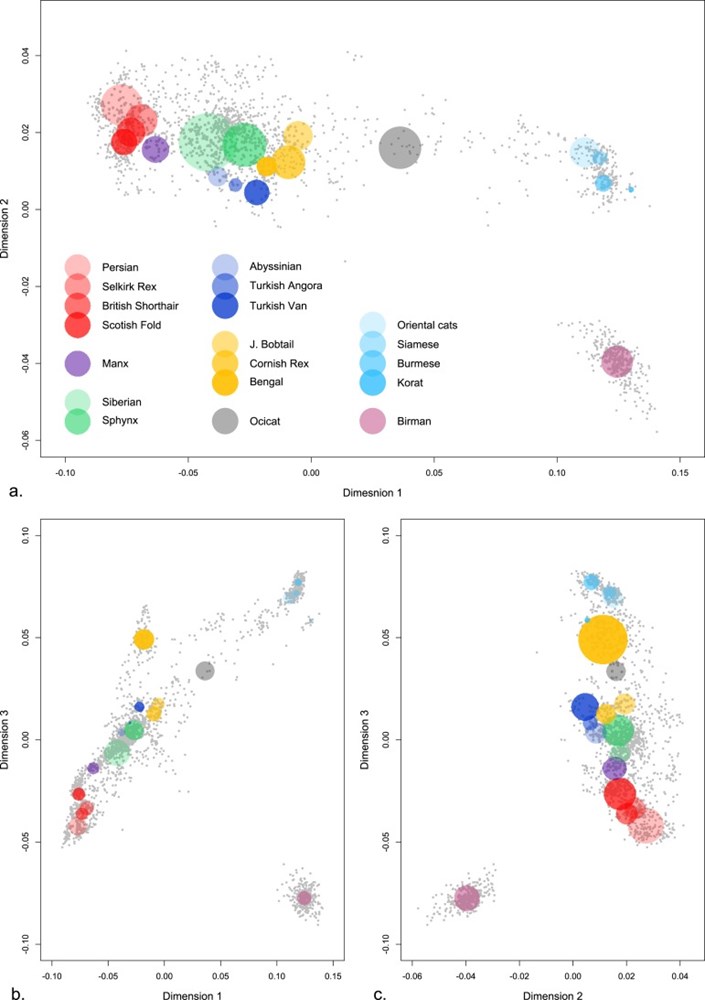

Figure 2 Multi-dimensional scaling of cat breed genetic structure. Plots of the genetic distances between individual domestic cats in three dimensions (C1 vs. C2, C2 vs. C3, C1 vs. C3). Gray dots represent individual cats and collectively show the overall distribution of populations. Selected breeds are highlighted by a colored circle where each colored circle corresponds to a population. The positions of the circles and the sizes are drawn to qualitatively distinguish between popular cat breeds (see materials and methods). (a) dimension 1, (b) dimension 2, (c) dimension 3. The Birman breed (light purple) consistently is a highly distinctive population. Asian breeds (light blues) are highly distinct from Western breeds (reds). Ocicat (grey) are a breed developed by crossing Abyssinians with Siamese and are intermediate in the gradation of cat breeds. The MDS of each population is presented in Supplementary Figure 4.

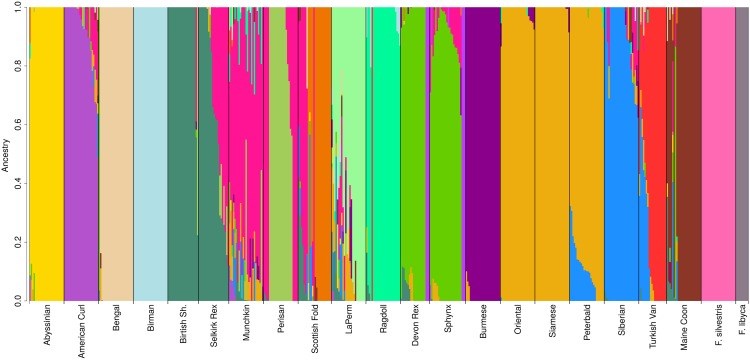

Figure 3 Population structure plot (K = 19) of twenty cat breeds and two wildcat populations. faststructure was used to examine the same cat populations as described for the MDS analyses. Cat breeds with the same colors indicate admixture and shared ancestry/cross-breeding. For examples, Peterbalds are derived from Siamese and Oriental lines and several breeds have been developed from Persian lineages, such as Munchkins and Scottish Fold, to obtain brachycephalic head structure.

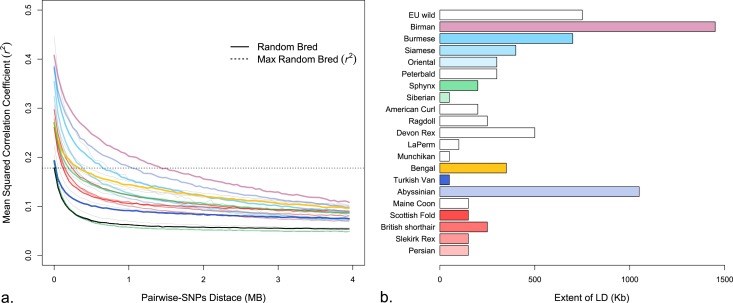

Figure 4 Genome-wide estimate of linkage disequilibrium (LD) of cat breeds. (a) Decay of LD (r2) at different bins of inter-SNP distances. LD decay of selected population is shown as a color (see (b) for key to colors) and remaining populations are shown in gray. Solid black decay line corresponds to the random bred population, to which all breed populations are compared. Horizontal dotted line represents the maximum of r2 value in random bred population and the point of comparison between populations (the point of LD < 50 Kb). (b) Extent of LD (Kb) where the r2 value reaches that of random bred population.

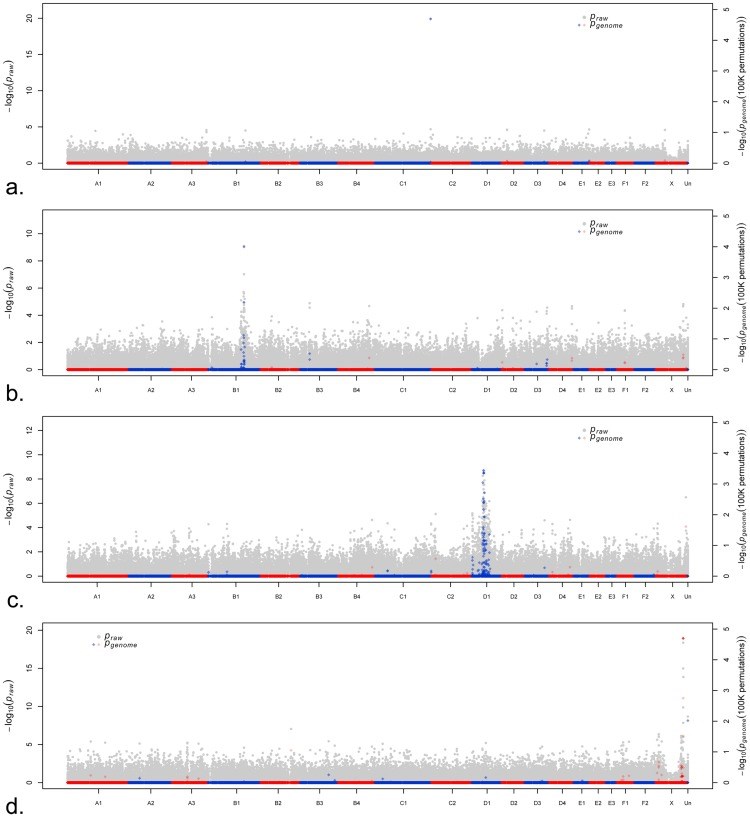

Figure 5 Illustrative genome-wide association analyses for four phenotypic traits in the domestic cats. Manhattan plots of the association analyses where x-axis represents chromosomes, gray dots and left y-axis represent raw P-values of the association, and red/blue dots and right y-axis represent the permuted P-values. (a–c) Remapping of three autosomal recessive traits (Dense, Long, and Color (cs allele), respectively) and (d) X – linked Orange using different populations. (a) Only the causal SNP for Dilute is associated in random bred cats on cat chromosome C1. (b) Several SNPs are associated with the long hair phenotype on chromosome B1 in LaPerm, a newer breed but with little selection for the trait. (c) Several SNPs are associated for the cs allele in Color on chromosome D1 in Persians, one of the oldest breeds where the coloration has some positive selection. (d) GWAS of Orange, an X-linked trait, suggesting a critical region for the locus.
