The Effect of Cross-linking Efficiency of Drug-Loaded Novel Freeze Gelated Chitosan Templates for Periodontal Tissue Regeneration

Syed Saad B Qasim 1 2, Liebert Parreiras Nogueria 3, Amr S Fawzy 4, Umer Daood 5

Affiliations

doi: 10.1208/s12249-020-01708-x

Abstract

Innovative strategies for periodontal regeneration have been the focus of research clusters across the globe for decades. In order to overcome the drawbacks of currently available options, investigators have suggested a novel concept of functionally graded membrane (FGM) templates with different structural and morphological gradients. Chitosan (CH) has been used in the past for similar purpose. However, the composite formulation of composite and tetracycline when cross-linked with glutaraldehyde have received little attention. Therefore, the purpose of the study was to investigate the drug loading and release characteristics of novel freeze gelated chitosan templates at different percentages of glutaraldehyde. These were cross-linked with 0.1 and 1% glutaraldehyde and loaded with doxycycline hyclate. The electron micrographs depicted porous morphology of neat templates. After cross-linking, these templates showed compressed ultrastructures. Computerized tomography analysis showed that the templates had 88 to 92% porosity with average pore diameter decreased from 78 to 44.9 μm with increasing concentration. Fourier transform infrared spectroscopy showed alterations in the glycosidic segment of chitosan fingerprint region which after drug loading showed a dominant doxycycline spectral composite profile. Interestingly, swelling profile was not affected by cross-linking either at 0.1 and 1% glutaraldehyde and template showed a swelling ratio of 80%, which gained equilibrium after 15 min. The drug release pattern also showed a 40 μg/mL of release after 24 h. These doxycycline-loaded templates show their tendency to be used in a functionally graded membrane facing the defect site.

Keywords: chitosan; doxycycline hyclate; functionally graded; glutaraldehyde; periodontitis.

Figures

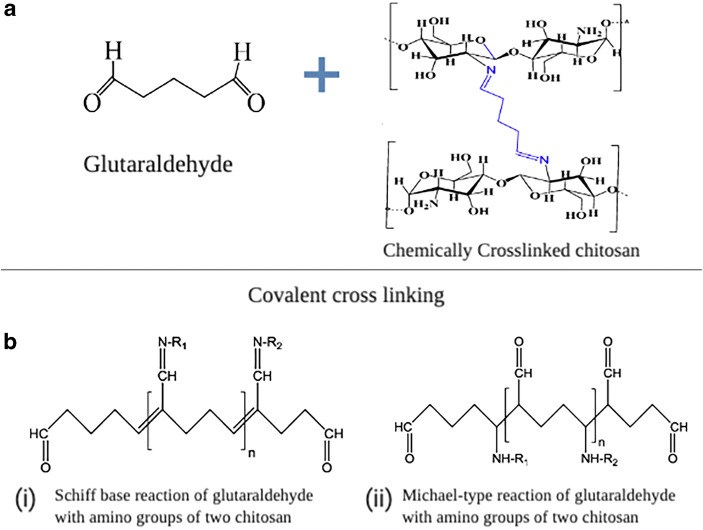

Fig. 1 Diagrammatic illustration of possible interactions of chitosan and glutaraldehyde. a Chitosan cross-linked with glutaraldehyde chemically. b(i) and (ii) Covalent linkages of chitosan and glutaraldehyde via Schiff’s base and Michael type reaction

Fig. 1 Diagrammatic illustration of possible interactions of chitosan and glutaraldehyde. a Chitosan cross-linked with glutaraldehyde chemically. b(i) and (ii) Covalent linkages of chitosan and glutaraldehyde via Schiff’s base and Michael type reaction

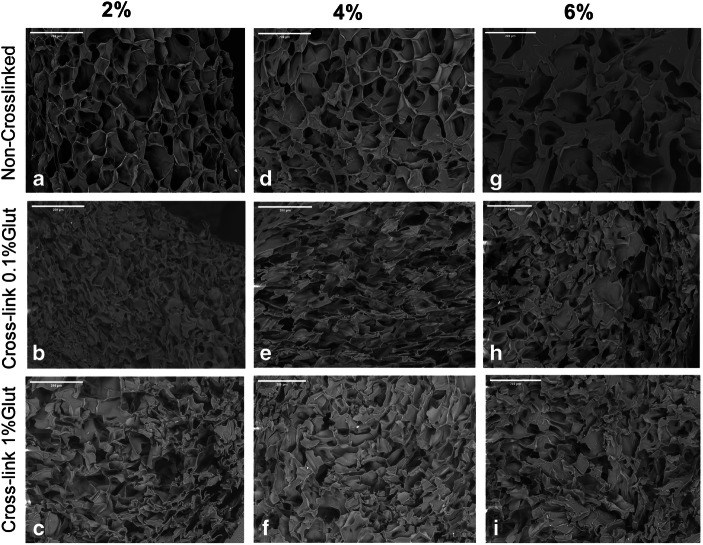

Fig. 2 SEM images of freeze gelated 2, 4 and 6% chitosan cross-linked with 0.1 and 1% glutaraldehyde. All images are scaled at 200 μm

Fig. 2 SEM images of freeze gelated 2, 4 and 6% chitosan cross-linked with 0.1 and 1% glutaraldehyde. All images are scaled at 200 μm

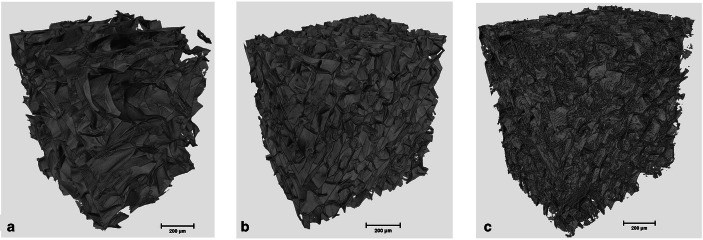

Fig. 3 Computerized tomography images of templates prepared by 2, 4 and 6% chitosan. Images depicting the porous morphology achieved. All images are scaled at 200 μm

Fig. 3 Computerized tomography images of templates prepared by 2, 4 and 6% chitosan. Images depicting the porous morphology achieved. All images are scaled at 200 μm

Fig. 4 FTIR spectral profile of a neat chitosan scaffolds at 2, 4 and 6%. b The finger print region of 2% chitosan cross-linked at 0.1 and 1% glutaraldehyde; c 4% chitosan cross-linked at 0.1 and 1% glutaraldehyde; d 6% chitosan cross-linked at 0.1 and 1% glutaraldehyde; e 2, 4 and 6% chitosan cross-linked at 0.1% glutaraldehyde and loaded with doxycycline hyclate; f 2, 4 and 6% chitosan cross-linked at 1% glutaraldehyde and loaded with doxycycline hyclate

Fig. 4 FTIR spectral profile of a neat chitosan scaffolds at 2, 4 and 6%. b The finger print region of 2% chitosan cross-linked at 0.1 and 1% glutaraldehyde; c 4% chitosan cross-linked at 0.1 and 1% glutaraldehyde; d 6% chitosan cross-linked at 0.1 and 1% glutaraldehyde; e 2, 4 and 6% chitosan cross-linked at 0.1% glutaraldehyde and loaded with doxycycline hyclate; f 2, 4 and 6% chitosan cross-linked at 1% glutaraldehyde and loaded with doxycycline hyclate
